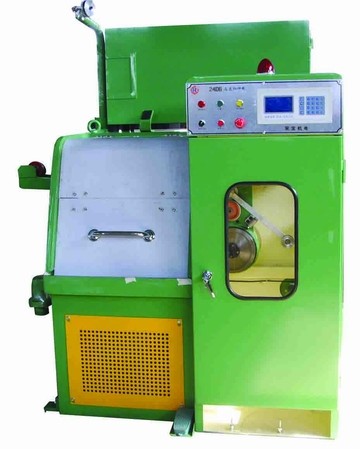

Stainless Steel SS Wire Fine Wire Drawing Machine 14DSS/24DSS For Fine Wire Range

Product Categories

NEWLEAD WIRE AND CABLE MAKING EQUIPMENTS GROUP CO.,LTD

Contact Now

Name: Stainless Steel SS Wire Fine Wire Drawing Machine 14DSS24DSS For Fine Wire Range
Brand: Newlead
Price: 1 USD

Place of Origin : Jiangsu, China (Mainland)

Brand Name : Newlead

Model Number : 14DSS/24DSS

Certification : CE

Price : Negotiation

MOQ : 1 Unit/Units

Supply Ability : 1 set in 50 days

Delivery Time : 50 days

Packaging Details : wooden pallet or by wooden box

Outlet Diameter : 0.08-0.25mm

Voltage : 380/415/440/220 optionally

Power(W) : 11KW+4KW

Dimension(L*W*H) : 2.1*1.6*1.7M

Weight : 2T

Warranty : 1 YEAR

After-sales Service Provided : Engineers available to service machinery overseas

Contact Now

14DSS/24DSS Stainless steel SS wire fine wire drawing machine for fine wire range

14DB

machine type	14DB
inlet diameter(mm)	￠0.6-￠1.2
outlet diameter(mm)	￠0.25-0.5
drawing line speed	800
drawing dies No./Max	14
slip ratio of m/c	12％
fix speed capstan slip ratio	8％
capstan	tungsten
capstan dia.(max.)(mm)	￠380
fix speed capstan dia.(mm)	￠330
frame	welded by steel plate
main motor	18.5KWthree phase inductor motor
spooler motor	5.5KWthree phase inductor motor
revise system	PID synchronous spooler
transmission type	gear-shaped belt
send-out method	over head
tension control	pneumatic balance by swing arm
lubrication system of wire drawing	half-immersing
suitable diameter of spool(mm)	￠300
capacity for wire receiving(kg)	35
bobbin loading & unloading type	shaft type
power source	380V
brake	magnetic brake
machine dimension(mm)	1950L×1100W×1750H
machine weight(kg)	2200

machine type	24DB
inlet diameter(mm)	￠0.5-￠1.0
outlet diameter(mm)	￠0.08-￠0.25
drawing line speed(MPM)	800
drawing dies No./Max	24
Slip ratio of m/c	13％
fix speed capstan slip	8％
capstan	capstan
capstan dia.(max.)(mm)	￠194
fix speed capstan dia.(mm)	￠159
frame	ironed cast
main motor	15KWironed cast
spooler motor	4KWironed cast
revise system	PID synchronous spooler
inverter control	Dual inverter control
transmission type	flat belt
send-out method	over head
traversing unit	flat belt + timing motor
tension control	weight balance by swing arm
lubrication system of wire drawing	spray
suitable diameter of spool (mm)	￠200
capacity for wire receiving(kg)	13
bobbin loading & unloading type	shaft type
power source	380V
brake	pneumatic brake
machine dimension(mm)	2050L×1600W×1900H
machine weight(kg)	2500

Stainless Steel SS Wire Fine Wire Drawing Machine 14DSS/24DSS For Fine Wire Range
